Dhaka Bypass Expressway
Bangladesh's first fully access-controlled expressway, creating a strategic corridor around eastern Dhaka
Project Overview
About the Project
The Dhaka Bypass Expressway is a transformative 48.07-kilometer highway that provides a strategic corridor around eastern Dhaka, connecting major national highways N1 (Dhaka-Chattogram), N2 (Dhaka-Sylhet), N3 (Dhaka-Mymensingh), and N4 (Dhaka-Tangail/Northwest).
Developed under a Public-Private Partnership (PPP) model, this project represents a significant milestone in Bangladesh's infrastructure development. The project follows a Design, Build, Finance, Operate, Maintain, and Transfer (DBFOMT) arrangement with a 25-year concession period.
When completed, the expressway will reduce travel time between Joydebpur and Madanpur from over 2 hours to approximately 40 minutes, significantly improving connectivity and economic prospects for the region.
Current Status
Category Breakdown:
Key Achievements
- Completed Foundations
All foundation work has been completed (100%).
- Major Structures Progress
Structural work is at 90.9% completion, including Ulukhula, Nagda, Mir er Bazar, and Dhirasram Overpasses.
- Road Construction
Over 31.76 km of embankment fill for the toll road and 40.44 km for service roads completed.
- Pavement Layers
Approximately 22 km of asphalt layers (AC-20 & AC-13) completed for toll roads and 28 km for service roads.
- Box Culverts
62 out of 73 planned box culverts have been completed.
Project Timeline
2018
PPP Contract Signed
PPP contract was signed in December 2018 between Roads and Highways Department and the DBEDC.
2020
Construction Begins
Initial construction works commenced in November 2020, with final construction officially starting in May 2022 after the Appointed Date was established.
2022
Appointed Date
May 15, 2022 was established as the official Appointed Date, marking the formal commencement of the construction period.
2025
First Section Opening
This section from K4 to K22 was put into trial operation during the Eid-ul-Fitr period from March 27 to April 5.
2025
Second Section Opening
The section from K22 to K35, including service roads, is targeted to open by December 2025.
Project Specifications
Length
Total expressway length from Joydebpur to Madanpur
Main Carriageway
9.7m width (7.3m + 2.4m shoulder), design speed 80 km/h
Service Roads
5.8m width (7.3m every 5 km in the RAJUK Section), design speed 50 km/h
Toll Plazas
Strategically placed along the expressway
Major Structures
Including 5 river bridges, 3 minor bridges, 4 flyovers, 45 underpasses, and 87 culverts
Contract Period
Design, Build, Finance, Operate, Maintain, Transfer (DBFOMT)
Investment
Total initial project investment
Developer
Dhaka Bypass Expressway Development Company

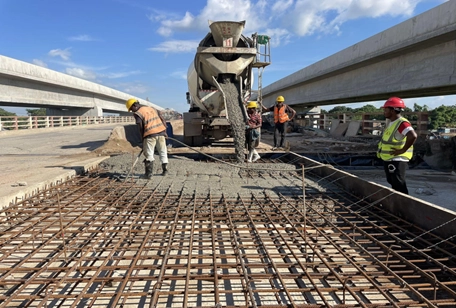

Innovative Semi-Rigid Pavement Technology
Introducing cutting-edge road construction technology to Bangladesh
Semi-Rigid Pavement
A hybrid pavement system combining flexibility and durability
Technical Advantages
- High load-bearing capacity for heavy commercial vehicles
- Enhanced durability compared to conventional asphalt pavements
- Better resistance to rutting and deformation under tropical conditions
- Reduced maintenance requirements over the project lifecycle
Construction Process
Advanced techniques for superior road quality and longevity
Process Innovation
- Precision thickness control using advanced equipment
- Specialized curing techniques to prevent premature cracking
- Continuous quality monitoring during the construction process
- Computerized mix design for optimal performance characteristics
Technology Benefits
Extended Lifespan
30+ years of service life compared to 15-20 years for conventional pavements
Cost Efficiency
Higher initial investment but significantly lower lifecycle maintenance costs
Weather Resistance
Superior performance during monsoon seasons and extreme temperature variations
Vision & Mission
Transforming Bangladesh's Infrastructure
Our Vision
To transform Bangladesh's transportation infrastructure by creating a world-class expressway that serves as a model for future development projects, enhancing connectivity, and supporting economic growth.
We envision a future where modern, sustainable infrastructure empowers Bangladesh's continued development, improves quality of life, and positions the country as a hub for regional connectivity.
Our Mission
To deliver a transformative expressway that sets new standards for safety, efficiency, and sustainability in Bangladesh's transportation network.
- Implementing innovative engineering solutions and technologies
- Fostering knowledge transfer and capacity building
- Creating opportunities for economic development along the corridor
